ARE’s largest ballasted foundation is our AFS 3000. Reaching 30’ in diameter and weighing 200 tons once assembled, the 3000 can support a base moment of 4.3-million-foot lbs or poles with fairly heavy loading to 200’ or more.

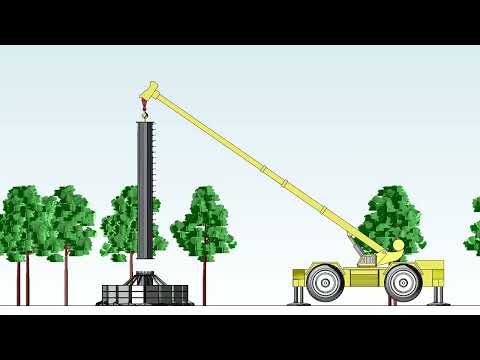

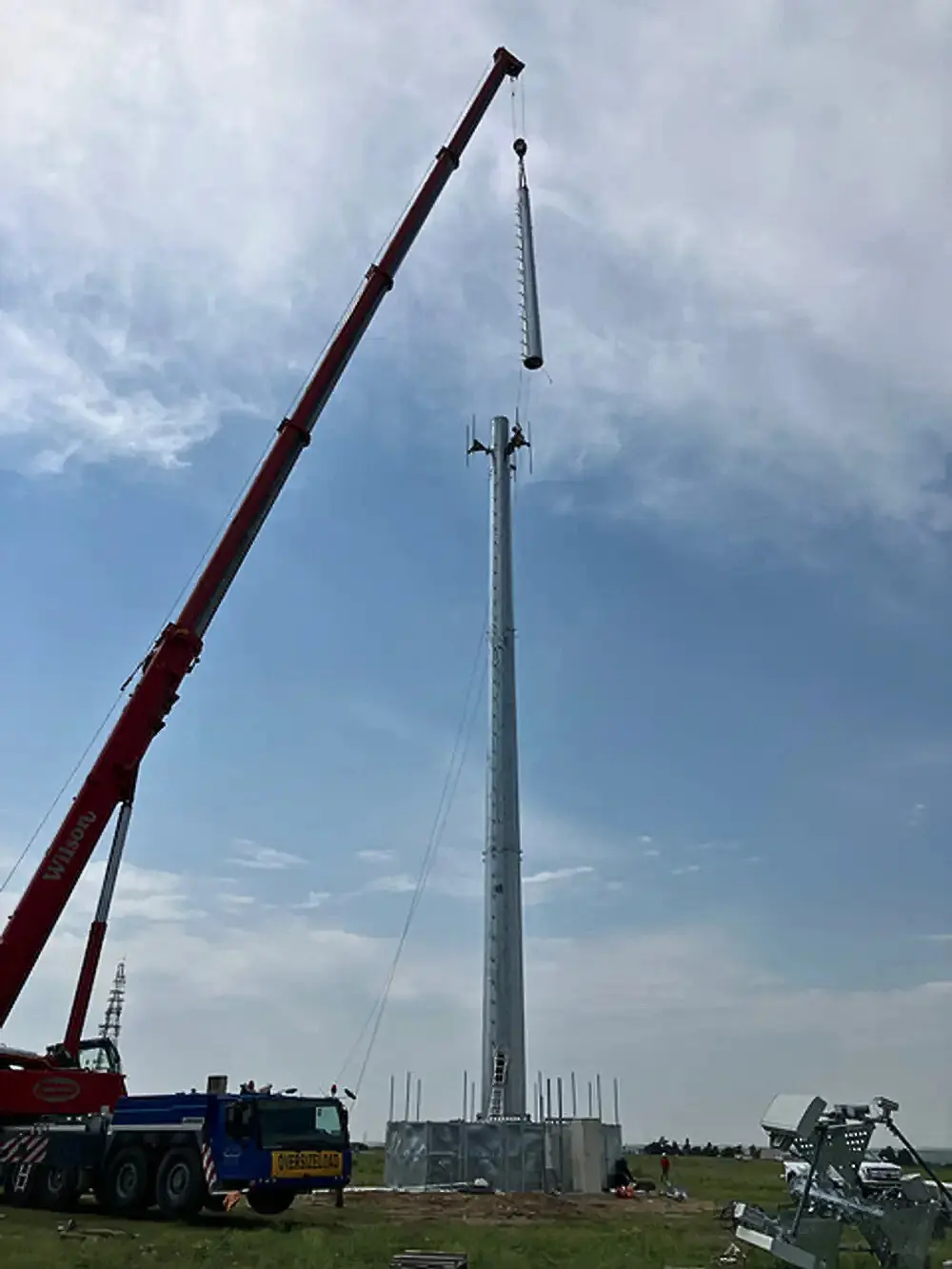

Like our AFS 1300 and 1700, the 3000 foundation has a central hub or kingpost that connect all ballast trays and truss arms, creating a rigid structure. Using a telehandler, a crew of 4 people can install the AFS 3000 foundation in less than 6 days. A crane is needed to set poles over 120 feet.
Like all ARE foundations and poles, this system can be installed for permanent installations or disassembled and moved to another location as needed. To date our patented ballasted systems have been deployed and commonly used for permanent and temporary systems by ATT for their First Net Network, Verizon, T-Mobile, US Cellular, US Military and Homeland Security on US borders.
